6 Inch Warm White Modular LED Under Cabinet Lighting - Standard Kit (4 Panels)

• Only 0.35 inch / 9 mm thick (60 percent thinner than the standard under cabinet lighting*).
• Sturdy aluminum body. One of the best in the market for its exceptional durability.
• Simple plug-in installation. For most of the cases, the only tool you will need is a screwdriver for the mounting bracket.
• Bright 600 lumen (about 20 percent brighter than most under cabinet lighting available in the market).
• Each individual has a bright 24 LED (Epistar 3528).
• It only consumes 7.2-watt maximum. Saves at least 80 percent on energy.
• 24 voltage offers highly energy-efficient, minimum heat contribution, longer life span, and safer.

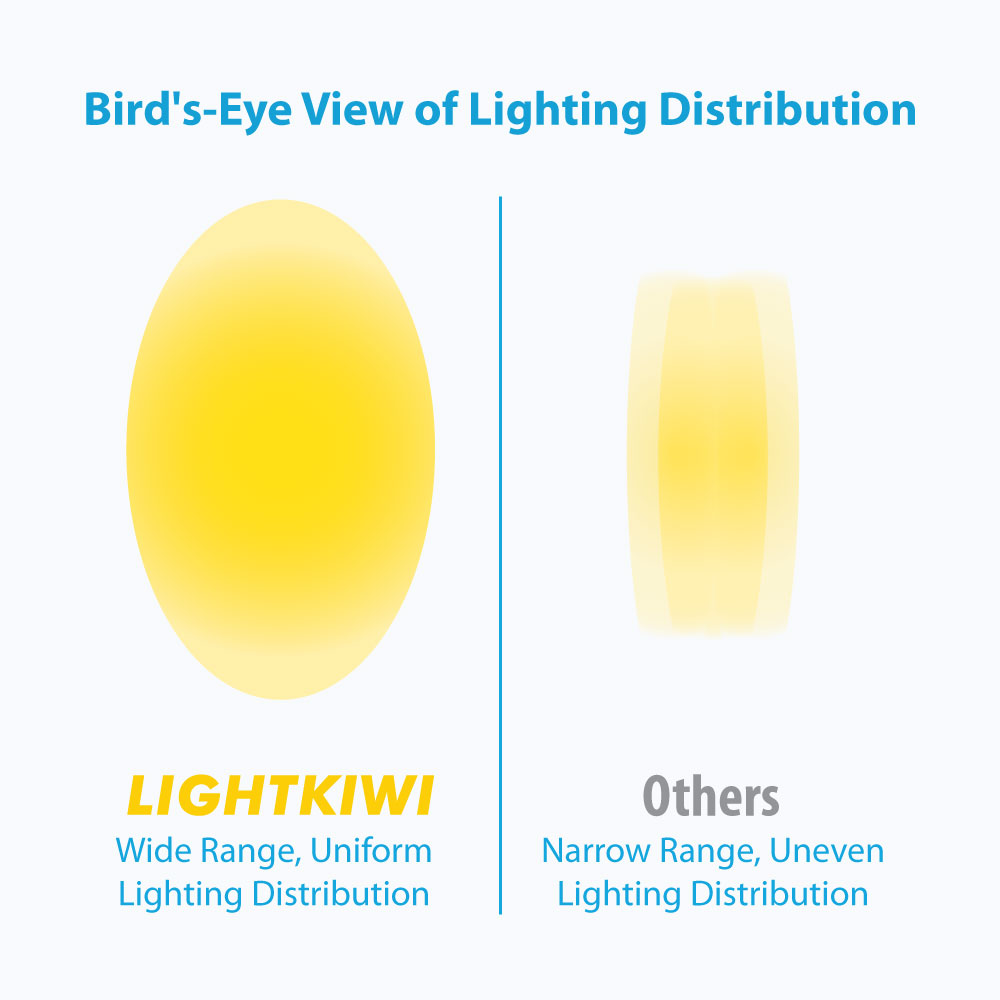

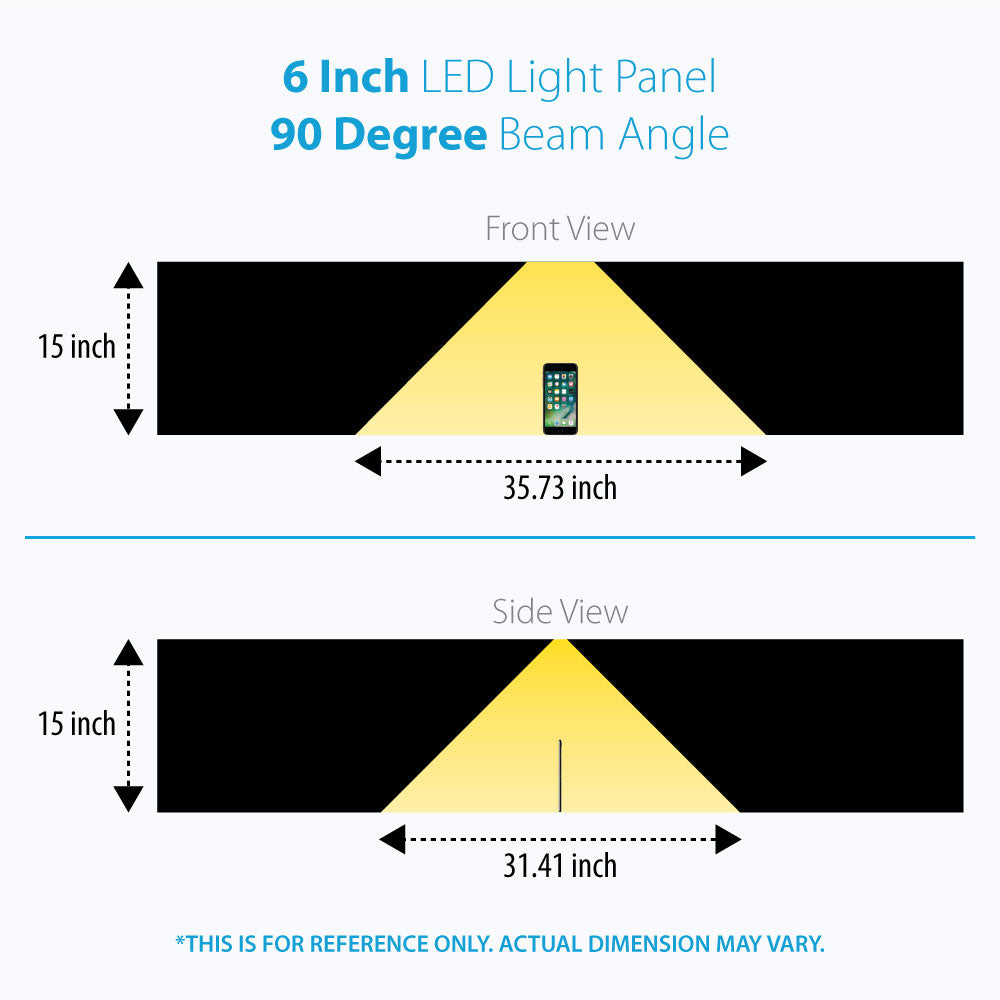

• The light distributes in a 90-degree beam angle to optimize & maximize lighting under the cabinet.
• Easily control the brightness to the desired level using the inline dimmer switch.
• To ensure maximum safety, Modular LED Light Panel & Power Supply have been certified by UL.

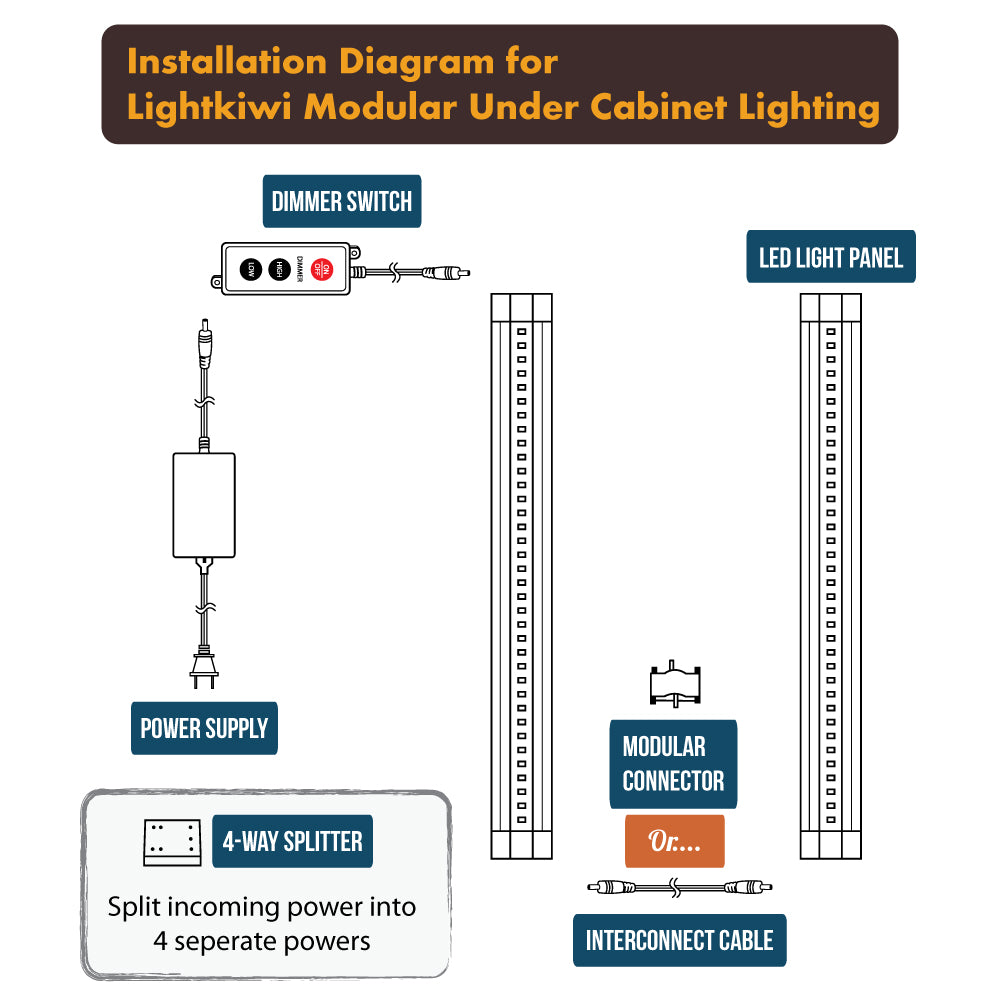

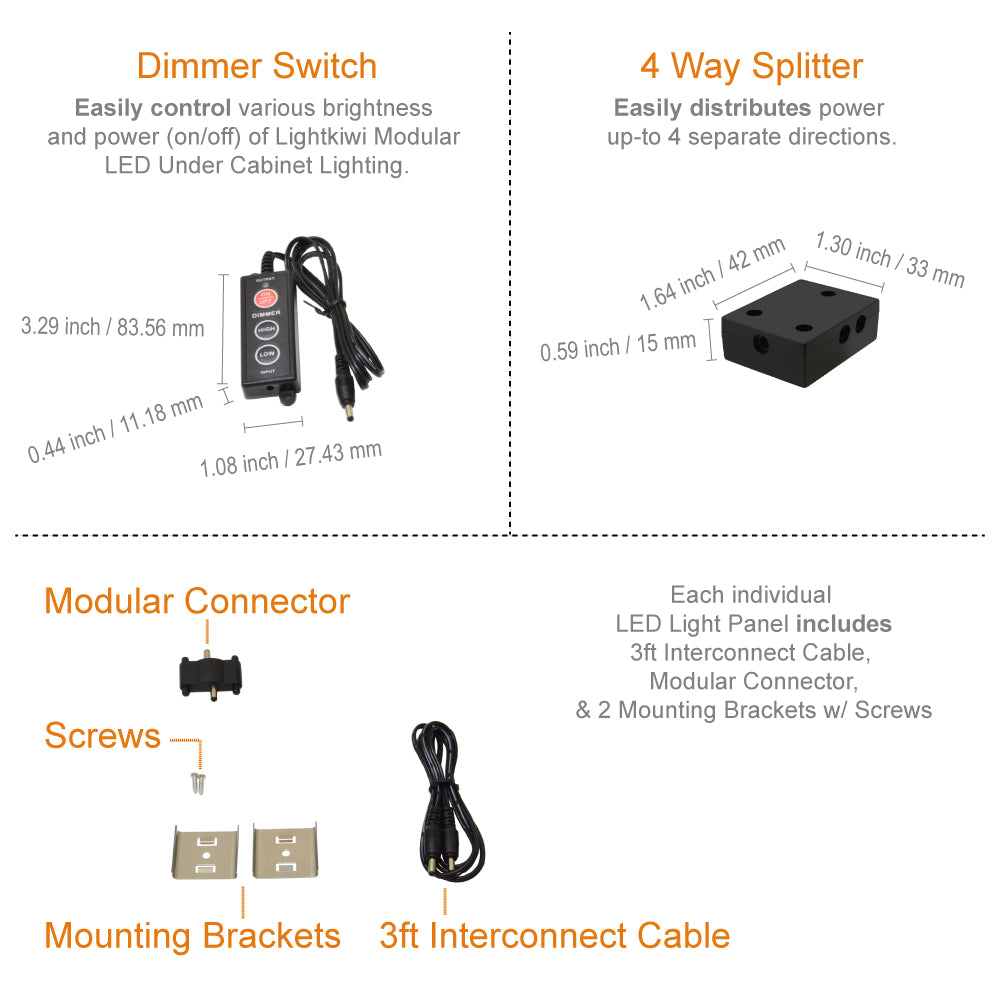

What's Included

• 4 x Lightkiwi 6 Inch Warm White Modular LED Under Cabinet Light Panel
• 1 x 12 Watt Power Supply - Link up to (4) 12-inch panels
• 1 x Dimmer Switch
• 1 x 4-way Splitter
• 4 x 3ft Interconnect Cable
• 4 x Modular Connector
• 8 x Mounting Bracket w/ Screw

If you want a different dimmer type, please select from “Dimmer Type (Optional)”. For more information, use the link below to learn more about each product.

• Dimmer Switch for Modular LED Under Cabinet Lighting (Black)
• Rotary Dimmer Switch for Modular LED Under Cabinet Lighting (Black)
• Wireless Dimmer Switch (Dial Remote Control + Receiver) for Modular LED Under Cabinet Lighting

[Dimension]

6 Inch LED Light Panel
5.90 x 1.30 x 0.35 Inch. (150 x 33 x 9 mm)

12 Watt Power Supply
2.70 x 1.92 x 1.04 Inch (68.5 x 48.78 x 26.42 mm)

Dimmer Switch
3.29 x 1.08 x 0.44 Inch (83.56 x 27.43 x 11.18 mm)

4-Way Splitter
1.64 x 1.30 x 0.59 Inch. (42 x 33 x 15 mm)

Modular Connector
0.62 x 1.28 x 0.35 Inch (15.75 x 32.5 x 9 mm)

Hardwire Installation
If you plan to use a wall dimmer switch, you need to do the hardwire installation with a dimmable transformer, instead of the included power supply which plugs into a wall outlet, due to the voltage difference between the wall dimmer switch (110V) and LED light panel (24V). The inline dimmer switch (24V) is incompatible with a dimmable transformer.

If not used with a wall dimmer switch, a plug-in power supply (except a wall mount power supply) can be used to do the hardwire installation, but if a dimmer switch is needed, a 24V dimmer switch is required. You would need to splice the power plug from the power cord and connect it to the power source with a junction box or something similar. The wall dimmer switch (110V) is incompatible with the plug-in power supply.

Power Supply Start-Up time
Depends on the wattage of the power supply, the start-up time may differ.  Please use matched wattage of power supplies for the best result.
